Wednesday, 27 February 2013

Woodson Build - Part 13

A few pictures and a quick update on the Reef tank… plenty more to come for this, just need to sit down and get writing!

A load of sand ready to go in!

Caribsea Fiji Pink.56

I had forgot to install the CO2 solenoid for the DaStaCo when i did the remounting(!), done now…

DaStaCo Calcium Reactor.45

Started to install and route the wires for it…

DaStaCo Calcium Reactor.23

Installed the controller and dosing pump in safe locations out the way. The controller is tucked up in the top corner, the doser is behind one of the uprights. easy enough to get at, but shouldn't get in the way.

DaStaCo Calcium Reactor.40

DaStaCo Calcium Reactor.55

Talking about DaStaCo, there are some new upgrades on the way for it.

Firstly a light sensor that adjust the dosing through out the lighting cycle as coral growth increases during the daylight hours.

And a new controller system to optimise CO2 gas usage.

I've not used my DaStaCo in anger as of yet, but will look at adding these two items in the near future.

On a side note there is a new DaStaCo reactor that looks very trick, they call it the XtremA!

DaStaCo XtremA

Looks cool with the twin acrylic towers, but i prefer my original panel mount one for the time being seeing as it fits better with my total setup.

DaStaCo reactors are available as always from H2O Aquatics.

Back to the DIY side of my build, i have now drilled the acrylic refugium for its pipework…

Daily FTS Custom DIY Acrylic Refugium.00

Daily FTS Custom DIY Acrylic Refugium.05

This all went reasonably well, but it did end up taking a chunk out of one panel at one point due to a lapse in concentration!

Daily FTS Custom DIY Acrylic Refugium.27

Thankfully, it came out in one piece, and the doubled up walls have turned out to be a godsend in this mishap!

The removed piece was doused in solvent cement and clamped into position.

It worked a treat and its hard to see the defect afterwards! (Looks worse than it is in the next picture!)

Daily FTS Custom DIY Acrylic Refugium.43

I still don't fully trust myself with this acrylic work, even though I've proven so far that it doesnt leak! So i added a seam of HA6 to the joints to try and reinforce faith in myself!

Daily FTS Custom DIY Acrylic Refugium.30

Masked and added a seam to all corner joints…

Daily FTS Custom DIY Acrylic Refugium.20

Then added the tank connectors…

Daily FTS Custom DIY Acrylic Refugium.58

Almost ready to go into the system!

Loads of new items arrived and arriving soon, and a lot of Neptune Apex silliness coming up in the next posts!

Feb 13 - Lido Update

Its been a while since i said anything about my freshwater tank… well its been a while since i have said anything at all!

But its worth a mention at the moment as in some respects it has gone down hill a little.

If you have read before hand, i try to keep a level of plantation in this tank. Its no show stopper by anyone's standards, but it generally has always had an interesting enough aquascape with basic plants for both the fish and the casual viewer to enjoy.

Something is up though, most of my Vallis plants are just falling apart at the moment, while the Java Fern seems to continue to flourish.

I have not changes the fertilizer dosing, and have switched to EasyLife EasyCarbo for the carbon supplement, seeing as it was about half the price of Seachem Flourish Excel i thought i would give it a shot.

I apologise in advance for the hopeless image quality of this post! My point and shoot camera is just terrible, however, i have fixed my DSLR! So this should be rectified very soon!

EasyLife EasyCarbo.47

One thing i have altered though is the amount of Seachem Equilibrium i use in the tank. I had halved the recommended dose to try and reign in the GH levels of the tank that seemed to be rising out of proportion. But looking into the issues and reading around the internet i have learned that Vallis plants, from a few sources, soak up quite a bit of carbonate hardness?

The plants are literally disintegrating at the moment and i regularly find myself removing a handful of released leaves every couple of days.

With me reducing the amount of mineral addition i wonder if its my actions that are killing the plants off?

I am certainly going to try upping it back to the recommended dose, as these plants were growing like weeds at one point, requiring a pruning session every week.

Again, a poor image, and only the early stages of the Vallis going down hill, in fact they are probably down to half of this by now…

Daily FTS Juwel Lido 120.58

The Java Fern meanwhile, keeps on sending out new shoots and forming new plantlets…

Daily FTS Juwel Lido 120.50

And last but not least, some green algae has returned to the tank, in a matting formation on the sand. This is very odd as the parameters have hardly shifted and maintenance is always kept on top of.

I am currently siphoning the “mats” out every week to try and keep it cut down.

Daily FTS Juwel Lido 120.30

I have been speaking to a few people and my next big project after the Woodson Reef Tank is running will be to upgrade the Lido and concentrate on a proper planted tank.

Saturday, 9 February 2013

Woodson Build - Part 12

For this part i will show how i built the mechanical filter that will go in the first chamber of of my sump.

First i acquired some egg-crate, also known as filter dividing plates and can sometime be found in the Pond/Koi section of your LFS. It is relatively cheap, with a sheet A3 size costing about £6.

01-Daily FTS.20

I ideally wanted to use a bandsaw to cut the egg-crate to size but try as i might could not find an available one.

So i improvised, by using my work bench and a large saw.

First i clamped the egg-crate in the bench, at the desired length…

02-Daily FTS.51

Then, holding the saw flat against the bench and doing very gentle and brisk sweeps, slowly worked through the plastic. I found it a good idea to use one hand on the other end of the blade to keep it flat against the bench…

03-Daily FTS.18

I cut two pieces. One will be the bass that filter floss will sit on, the other will be an end plate.

04-Daily FTS.57

I made some feet from a few pieces of PVC pipe, these will suspend the base off the glass giving and open void in the bottom. If i sat the egg-crate on the base of the sump it would effectively block the gap under the bubble trap…

05-Daily FTS.42

I added a few holes into the pipe pieces to ensure a bit of flow in and out of them…

06-Daily FTS.13

At first i tried to glue the pipe pieces to the egg-crate, but it turns out it is strange material to try and stick stuff too! Neither super glue or solvent glue did anything to make a decent bond!

So i drilled a few extra holes and “stitched” them onto the egg-crate using cable ties…

07-Daily FTS Mechanical Floss Filter.21

08-Daily FTS Mechanical Floss Filter.28

This gave them a very firm and reassuring attachment! If you do the same, ensure they are the full plastic cable ties and do not have the metal grips that some have.

09-Daily FTS Mechanical Floss Filter.24

Next i attached the end piece in the same way…

10-Daily FTS Mechanical Floss Filter.19

A few adjustments with the multi tool to the corners to ensure they were not encroaching on the silicone joints and time for a test fit…

11-Daily FTS Mechanical Floss Filter.57

I will sit some floss in this area to catch any solid waste, which can then just be pulled out and thrown away, i prefer this method instead of having to constantly clean filter socks.

The area in front of the end plate will be the location of the Refugium pump, so it receives water that hasn't yet passed by the reactors or the skimmer.

RO Machine - Part 9

Project RO Machine has been a little slow as of late, mainly due to freezing temperatures and me making a mess of myself and pulling my back!

But i did make a start on building the systems enclosure that it will live it and hopefully remain insulated from any cold weather.

I started by removing this pile of crap from under the work bench and making another pile of crap with it elsewhere in the garage…

1-Daily FTS RO Machine.16

Using mostly recycled materials too and my frankly poor woodwork skills, i started to build in a frame of some sorts…

2-Daily FTS RO Machine.49

A couple offcuts of Contiboard for a mounting plate…

3-Daily FTS RO Machine.04

To provide a suitable surface to mount the RO Unit…

4-Daily FTS RO Machine.24

Eventually this will all be boxed in and insulated and the control unit will be above the bench for easy access. It looks a bit rough for now but should serve its purpose!

Review: Neptune Systems Apex Controller

A quick review of the Neptune Systems Apex aquarium controller.

I recently collected my Neptune Systems Apex controller from Nick at Aquarium Cabinet Solutions and have since removed the on test GHL Profilux from my Lido 120 tropical aquarium and rigged up the Apex in its place to compare and contrast.

The base package consisted of the following.

  • 1x Base Unit
  • 1x Display Module
  • 1x EB6 Energy Bar
  • 1x Standard pH Probe
  • 1x Temperature Probe
  • Calibration Solutions

1-Neptune Systems Apex Controlller.24

The Base Unit is the brains of the operation and essentially what controls everything else on the network. It can operate alone with no Display Module and work purely through the included web application embedded in the device itself.

The Base Unit alone has the the provision for a temperature probe, a pH probe and a dual port that can take either an ORP or secondary pH probe. There are two variable control ports capable of controlling up to 4 circulation pumps (2 per port).

It does not require a power adaptor, despite the fact there is a power socket. It will quite happily run from the power provided by the Aquabus (USB based) system when connected to the Energy Bar. However, a power supply can be added to this port for additional reassurance and can work with a USP that also keeps you router running long enough to fire off an email informing you that the power has gone off. A very neat trick.

Connecting to the web interface is a very straight forward task with minimal networking knowledge when connecting with the Apex on your (Home) Local Area Network.

Accessing the system over the internet is entirely possible, but involves a bit more work. However the Comprehensive User Guide that can be found on the Neptune Systems website is thoroughly excellent and should have most people at least using the LAN access within minutes.

The web interface allows full control and programming of the system, and has a fully customisable dashboard, which you can use as a monitor type setup if you had a spare computer hanging around or dial in using a web browser from pretty much any device on your home network.

An example of my Dashboard…

1-Fullscreen capture 09022013 152425

A very low form factor of the Base Unit and mounting tabs on either side make it very easy to mount into its desired location with very little loss in real estate.

So far i have yet to find any cons about the Base Unit!

3-Neptune Systems Apex Controlller.26

The Display Module is a great tool to have as part of the system, as it shows live data, allows (almost) full control and configuration of the system, and enables quick easy selections of Feed Pause controls etc...

It is not a touch screen, as Neptune Systems decided to go with the rubberised mechanical control. Each button is nice and direct and engages with a satisfying soft click when using the device, with no ambiguity if you have actually pressed it or not.

The Display Module is very light and thin, with an ultra thin and very generous length cable. A few strips of double sided sticky tape or Velcro are all that is required to attach it to a surface, no need to drill hanging screws or hooks, even though there is the provision in the rear.

While the parameter read outs are clear and easy to understand, the configurable icons that you can have along the bottom of the screen can look a little untidy with no real indication as to what they are referring to.

It is up to you to set these icons and as a result you will tend to remember what you have configured and where. The icons do change to emulate what a specific control or outlet is doing, such as a vague looking thermometer to show when the temperature is rising or falling.

I will play with the icons a little more and see if i can make more (personal) use of them, at the moment i have 4 of them set to pretty much show when an outlet is on or off etc...

The screen is a simple white on blue backlight affair, its basic, but doesn't have the potential elegance of the full colour GHL Profilux Touch. It also sometimes feels a little “jumpy” as you scroll through the settings screens, you kind of see each button push selection constantly reloading onto the screen. Honestly though, this is a very superficial observation, as it operates perfectly otherwise and the Display Module for me stands as a monitor for on the fly parameters, i have done 99% of the programming and setting adjustments through the web interface.

One thing i do like is the fact that the Display Module has 4 configurable screen layouts, which you can customise and have different information and parameters on each one. Very useful for when you have many probes… or if you have several aquariums, you can have one Base Unit and a Display Unit with a specific screen configuration for each aquarium! Effectively saving you money if you want to expand your system, and not having several individual systems.

Of course the latter will only work on 4 aquariums with a maximum of 4 probes/parameters on each one. Each Display Module attached on the Aquabus will show all the same information, you just need the correct screen selected for the correct aquarium.

2-Neptune Systems Apex Controlller.55

The EB6 Energy Bar is what finally made the Apex available in the UK.

With 6 outlets for control of pretty much anything with a 3 pin plug!

One thing i like about the EB6 is its small size in comparison to the competition. It will be substantially easier to mount into an aquarium system.

Each EB6 has 4 Aquabus connections, and will provide the power to the Base Unit itself via this connection.

It is not the quietest power bar i have come across though. There is an audible “clunk” when a relay contacts or disconnects, which could be annoying if your aquarium is in a quiet area like a bedroom. I currently have mine mounted outside the aquarium cabinet which does not help. Hidden away inside the cabinet or a dedicated electrical cupboard would likely dampen the sound.

Also a shame as the US spec EB8 has 6 of its 8 sockets controlled with TRIAC’s (the other 2 are traditional mechanical relays) so those sockets are silent in their operation and also give a “soft start” to the piece of equipment being controlled, in effect you don't get the surge start of switching on something with a normal contact switch. The only issue with them is they are not so good with very low current devices, which is a 1-in-100 thing with aquarium equipment.

Another criticism of the EB6 is it does not have the current monitoring capability's that are found on the US EB8 version. This is one thing i was looking forward to after noting it on the Neptune Systems website (although i missed the comment about it not being supported on the EB6!) as i like to keep a close eye on my household energy usage.

The GHL plug bars will monitor the current on each individual socket, so its a Plus+1 to them there, even though you cannot currently log it, like you can with the EB8.

As a bonus though, the data logging does record the total “On-Time” for each outlet, so the power usage could retrospectively be calculated using Excel by using the XML output available through the web interface. I will try this out in future.

I wonder if Neptune will give us a different Energy Bar in future pending sales success that adds these functions?

4-Neptune Systems Apex Controlller.05

The iPhone and iPad apps (i believe there is also an Android app) are utterly brilliant, and work flawlessly, and they're free! Graphs, live data and manual control can be carried out on these devices and programming can be carried out in the same manner that it is conducted when using the web interface.

This is excellent as it means you can stand at the aquarium with your Smart Phone or Tablet and adjust and control things on the fly and see the results. No need to try and set the laptop up or try and awkwardly work with a PC.

Some iPhone app screen shots…

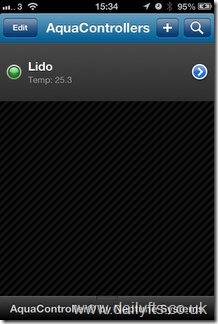

Multiple Apex controllers can be accessed by the app and are selected from the opening screen, a summary of the probes is also shown. Rich detail scalable (using tap and pinch) graphs of probe data.

1-Neptune Systems Apex iPhone App Screen Shots.072-Neptune Systems Apex iPhone App Screen Shots.20

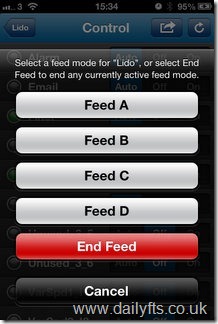

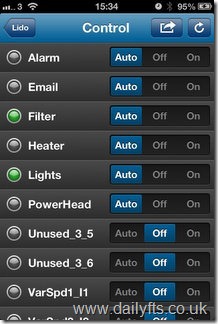

Manual control of all sockets and functions, Feed/Maint pauses can be launched from the device.

3-Neptune Systems Apex iPhone App Screen Shots.254-Neptune Systems Apex iPhone App Screen Shots.28

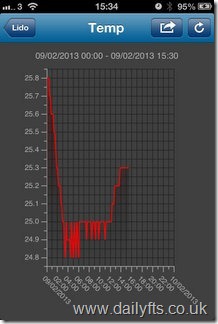

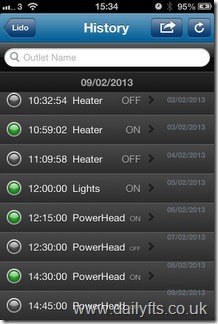

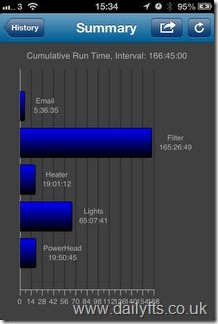

History (a favourite of mine) shows when sockets have been turned on or off in chronological order. Selecting one will show the Cumulative Runtime Summary.

5-Neptune Systems Apex iPhone App Screen Shots.396-Neptune Systems Apex iPhone App Screen Shots.56

Advanced programming can also be carried out on the device in the same way as per the web application.

7-Neptune Systems Apex iPhone App Screen Shots.16

If you get you system enabled over the internet, your phone and tablet will be able to inform you of your aquariums status wherever you are (pending a data connection of course!) I have managed to carry this out recently and it continues to work flawlessly.

It is especially easy if you are willing to spend around £20 to get yourself a DynDNS account and an email provider that doesn't insist on SSL (which the Apex is not compatible with). I personally used the offering of a domain name with 5 email inboxes from 1and1. The information in the Comprehensive Manual is slick and easy to follow for setting up the net access.

I love the scope for DIY with the Apex system too. Although there is the provision for a Neptune supplied Break Out Box. With a bit of knowledge, a handful of components and an afternoon you can rig up your own break out system to work with a pretty much any open switch circuit. Ranging from buttons to launch feed pauses, cabinet door switches to turn lights on (or off) and float switches for top off and automatic water changes. I will be expanding on this in the near future when i have a go at it myself.

Conclusion

On the whole i recommend the Neptune Systems Apex controller, to both novice and expert aquarists. As it offers a grand scale of usage options, for those who want a robust and compact controller to look after the simplest of operations, to the techygeeknerd’s of the aquarium world. It is well priced and well built system.

Is it better than the GHL Profilux? There are pros and cons to both systems and its difficult to say one is outright better than the other, but i do feel the Apex has more scope for the DIY enthusiast and the programming method is far superior.

However it lacks on the email side of things that the GHL is able to offer. Yes it does have email capability but the GHL has much better customisation options. That said the Apex has the wholly superior mobile applications, that said again… GHL are soon to release their own mobile apps!

I also prefer the nicer colour touch interface of the Profilux, but don't dislike the LCD and button controlled Apex display module…

I could go on and on like this… so i will look at compiling a comparative list soon instead!

The Apex in comparison though, will work out cheaper, and you certainly get a lot for your money.

Hope this has been of some help.

Wednesday, 6 February 2013

Glass Back

Well, i have been a bit tardy over the last couple of weeks due to an old injury flaring up in my lower back which makes it difficult to sit in an office chair for a decent length of time, and work around my aquariums.

I have made some decent progress with both my reef aquarium, the RO Machine and had time to get to know the Apex controller, my fresh water on the other hand seems to be taking a small downturn, although i feel this may be due to over feeding a little too much.

I will add my new posts as soon as i can when I'm feeling a little better. So please check back soon. Bob.
